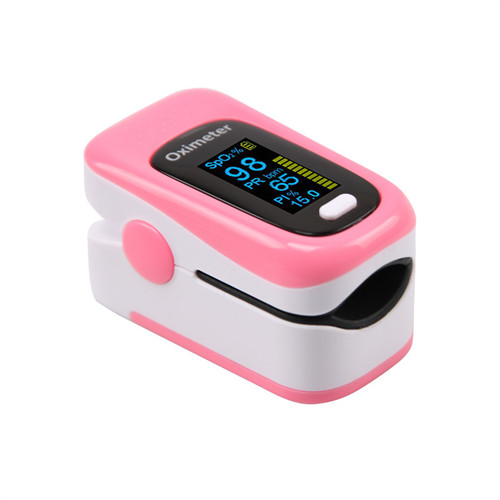

Finger Pulse Oximeter JM170C

Application

Pulse Oximeter can be used to measure human hemoglobin saturation and pulse rate through finger. The product is suitable for being used in family, hospital (including clinical use in internist/surgery, pediatrics, etc), oxygen bar,social medical organizations, physical care in sports and etc.

Intended Use

The product is intended for noninvasive monitoring of the adult or child's SpO2, pulse rate, PI and ODI

Features

• Oxygen desaturation index

• Parameters: SpO2, PR, PI, ODI

• Data store and analysis, data review

• 0.96" dual-color OLED display

• Screen display 4 directions and 6 models

• Visual and sound alarm function, pulse rate and sound indication

• Anti-movement, good low-perfusion performance

• Up to 8 hours data record

• Low power consumption (less than 30mA)

• Sleep monitoring, monitoring the sleep quality and sleep apnea

• Power Supply: 1.5V(AAA size) alkaline batteries x 2

Technical Specifications

• SpO2
Range: 35%～100％
Resolution: 1%
Accuracy: 80%-100%（±2%）
70%-80% （±3%）
﹤70% （unspecified ）
• PR
Range: 25bpm / min ～250bpm / min
Resolution: 1bpm
Accuracy: 2bpm normal

3bpm motion/low perfusion

• PI

Range: 0-30%

Resulotion: 1% (range 0-20%）

unspecified(20%-30%)

Accuracy: ±1% (0%-20%)

• ODI4(oxygen desaturation index)

Data Record Hour: up to 8 hours

Data Review
