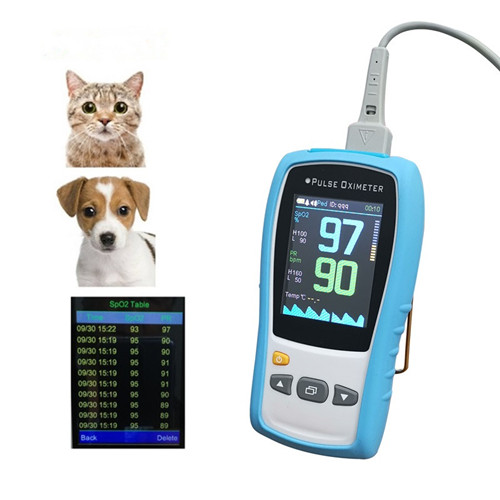

Veterinary Handheld Pulse Oximeter JH380V

Introduction:

The oximeter is a non-invasive, handheld oximeter. It operates on alkaline or rechargeable battery power supply. It is compact, small, light, and easy for learning and handling. It is suitable for spot-checking and short-time all animals from small to large. It is widely used in the hospital's operation room, ICU, clinic section office, out-animal department, sickroom, emergency treatment, and the recovery and health care organizations, or in the family nursing and in the process of transporting animals.

Parameters measured by the oximeter include: arterial oxygen saturation(SpO2), pulse rate(PR), bargraph and plethysmogram.The oximeter measures these parameters through a SpO2 sensor and displays them on the color TFT LCD screen after certain further processing.

The oximeter is operated and controlled by the buttons on the front panel. It adopts a 2.8 inch color TFT LCD screen in displaying measurements and in supplementary status indication.

Main Features

■  Light weight for carrying and Easy-To-Use

■  Silicon rubber shell protection and stable bracket for table usage

■  Using DB9 type connector compatible with Nellcor Spo2 Sensor

■  Support the oximeter probe for big clip, or small clip veterinary sensor

■  Big size 2.8 inch color TFT LCD display for SPO2/PR/Pulse bargraph/plethysmogram

■  Visual and sound prompt function

■  Adjust the parameters in friendly menu

■  Low Battery voltage indicator

■  Automatically switch off within 3 minutes when no signal

■  data store and review

■  Inner Flash memory can store testing result up to 360 hours

■  USB interface support upload the data to computer and review the history data with software in PC

■  Standard 4 x AAA 1.5V Alkaline battery or rechargeable Li battery is available for power supply

Parameter Specifications

SpO2

Animal: large, medium, small

Range: 35%~ 100%

Resolution: 1%

Accuracy: (70%-100%)

2% Normal

3% Motion or low perfusion

Below 70% not specified

PR

Range: 25bpm~ 250bpm

Resolution: 1bpm

Accuracy: (25-250bpm)

2bpm Normal

3bpm Motion or low perfusion

Temperature

Channel:1

Measuring and Alarm Range: 18~ 45℃

Resolution: 0.1℃

Accuracy: 0.1℃

Actualization interval: about 1 Sec

Average Time Constant: 〈10 Sec

Standard Accessory

Handheld Pulse Oximeter unit: 1 pcs

USB Cable: 1pcs

CD Software (User Manual, PC software): 1pcs

Optional Accessory

Veterinary Y-type Clip SpO2 Sensor: 1pcs

Esophageal/Rectal Temperature Probe: 1pcs
